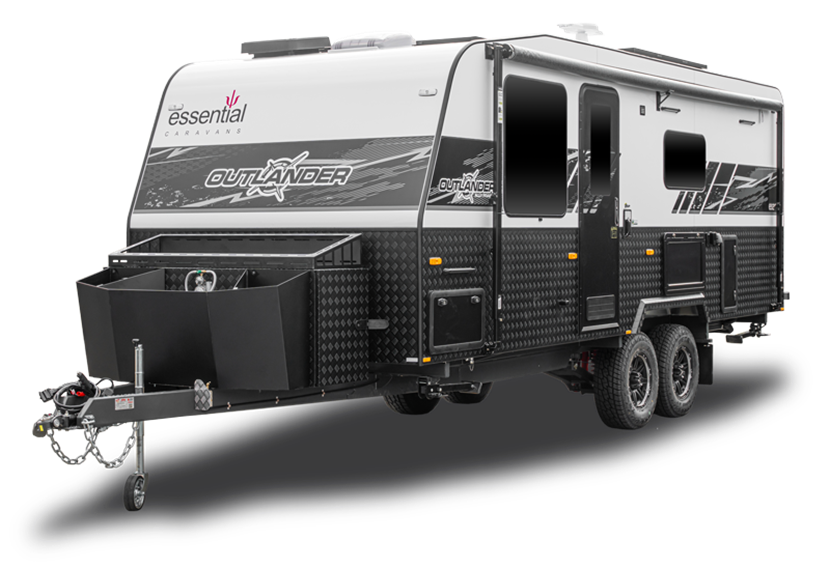

OUTLANDER
CaravanKey Features
Contemporary designs and layouts, modern appliances and creature comforts.
Floor Plans
Style, luxury and exceptional build quality
Models
-
Van Layouts
-
V1.0 - 17'4
17' 4" -
V1.1 - 18'8
18' 8" -
V2.1 - 19'
19' 0" -
V4 - 20'
20' 0" -
V5.2 - 20'6
20' 6" -
V6 - 21'
21' 0" -
V7 - 21'6
21' 6" -
V7.7 - 21'8
21' 8" -
V9 - 21'10
21' 10" -
V10 - 22'10
22' 10" -
Family Layouts
-
F1.2 - 19'
19' 0" -
F2 - 21'
21' 0" -
F2.6 - 21'10
21' 10" -
F2.7 - 21'10
21' 10" -
F3 - 22'10
22' 10"

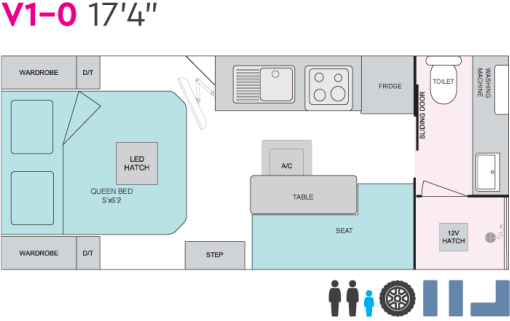

V1.0 - 17'4
Dimensions
Single Axle

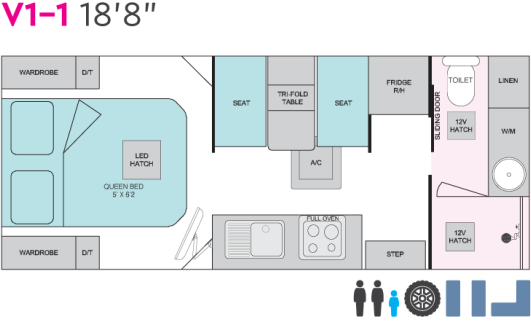

V1.1 - 18'8
Dimensions
Single Axle

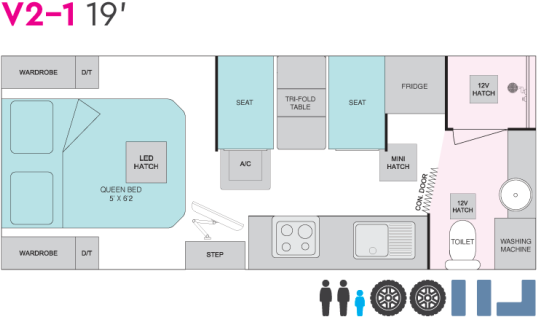

V2.1 - 19'
Dimensions
Tandem Axle

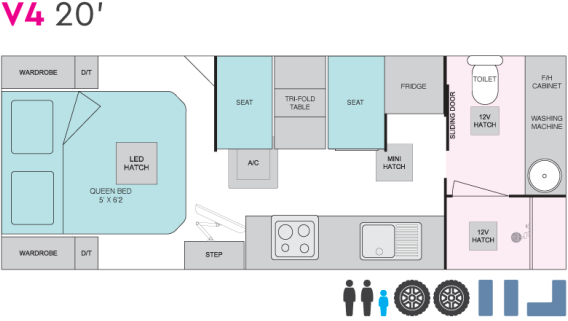

V4 - 20'
Dimensions
Tandem Axle

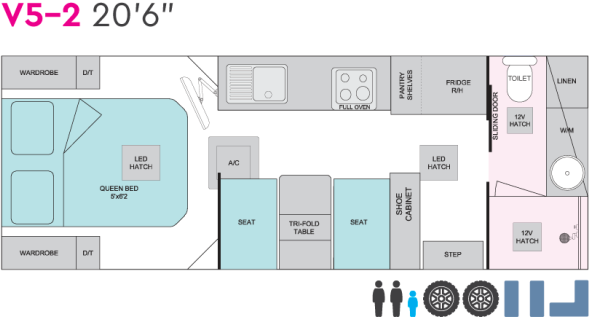

V5.2 - 20'6
Dimensions
Tandem Axle

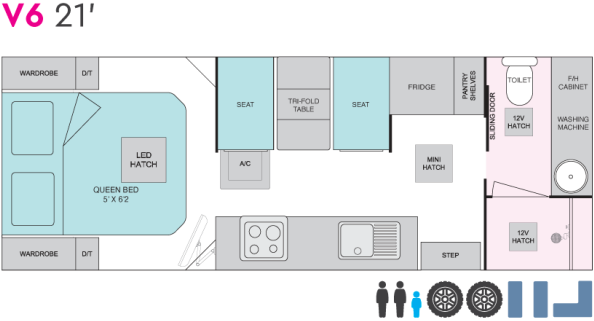

V6 - 21'
Dimensions
Tandem Axle

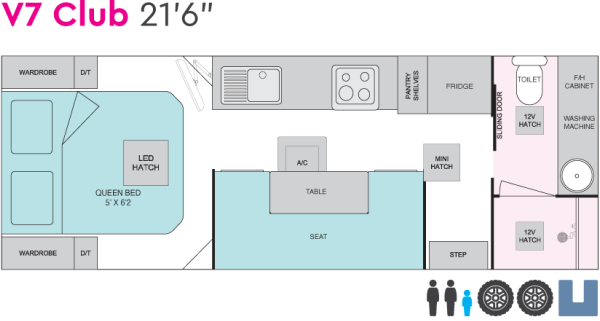

V7 - 21'6
Dimensions
Tandem Axle

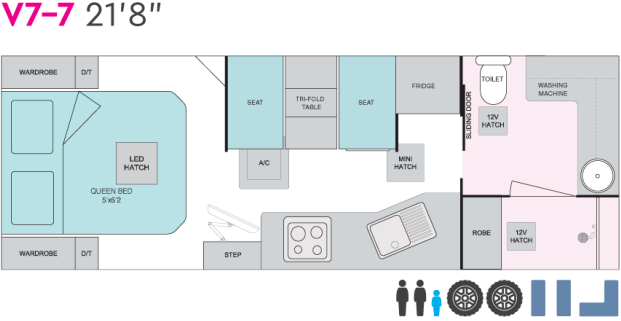

V7.7 - 21'8
Dimensions
Tandem Axle

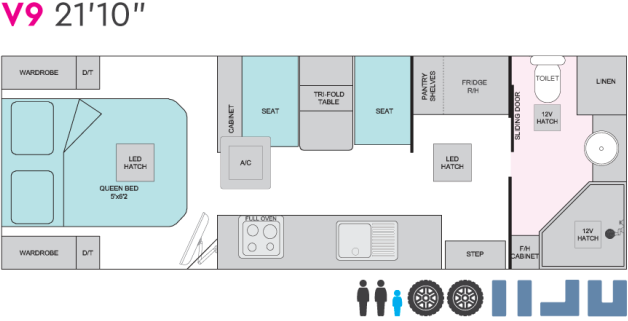

V9 - 21'10
Seating Option
Cafe Seating
L-Shaped Seating
L-Shaped Seating
Club Seating
Dimensions
Tandem Axle

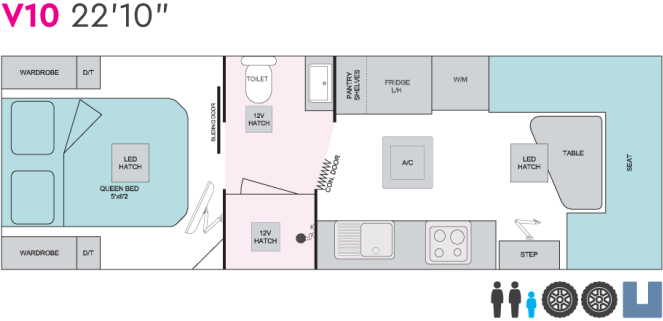

V10 - 22'10
Dimensions
Tandem Axle

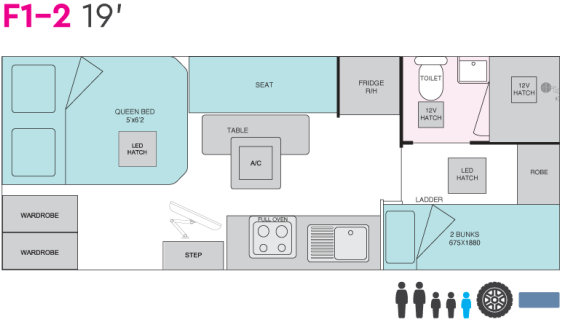

F1.2 - 19'
Dimensions
Single Axle

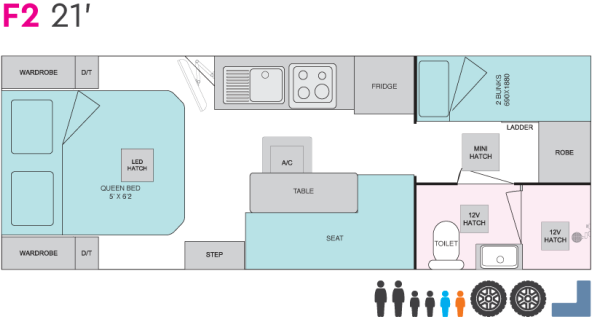

F2 - 21'
Dimensions
Tandem Axle

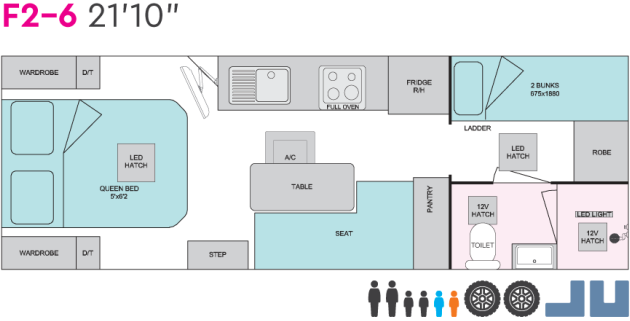

F2.6 - 21'10
Dimensions
Tandem Axle

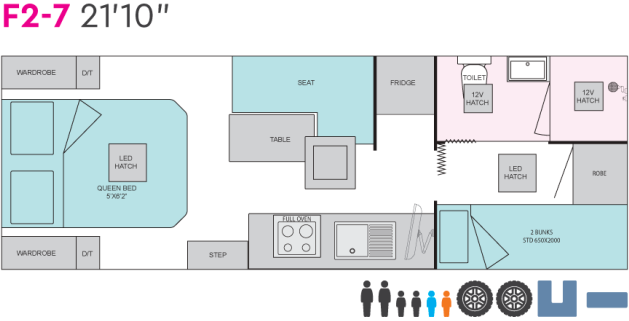

F2.7 - 21'10
Dimensions
Tandem Axle

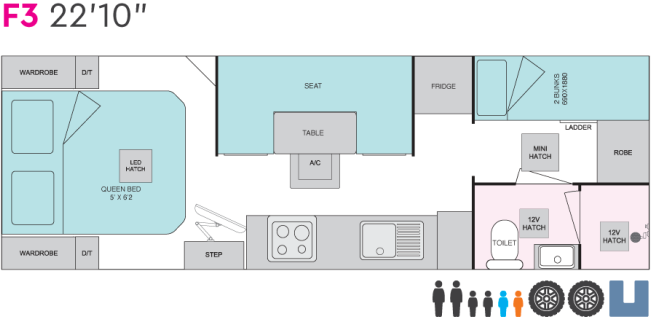

F3 - 22'10
Dimensions
Tandem Axle
OUTLANDER Standard Features
- A-Frame Tap & Gas Regulator
- Wind Up Jack
- Spare Wheel Fitted to Bumper Bar Bolt On
- Batteries Mounted on Chassis
- 12” Electric Brakes to All Wheels
- 6” Heavy Duty Chassis
- DO35 Coupling
- Galvanized Wheel Arches
- 265/75R16 All Terrain Tyres & 16” Alloys to Single & Tandem Axle
- 6” Heavy Duty A-frame
- Heavy Duty 3 Arm Bumper
- 8” Jockey Wheel
- Drop Down Stabilizer Stands
- Titan X Off Road Suspension to Tandem Axle
- A/Frame Extended 450mm
- Break Away Safety System
- Checkerplate Water Tank Guards
- Titan X Off Road Suspension 2750kg GTM to Single Axle
- Jumbo 500 Toolbox inc. 2 x Slides, Integrated Stoneshield & Woodbox
- LED External Lights
- Power Points (1x Kitchen, 1x Ensuite)
- 240V 15AMP Inlet & 240V 10AMP Outlet
- Bulk Heads With Strip Lights
- Circuit Breaker & Earth Leakage
- 12 Pin Trailer Plug
- Reading Lights to Bedroom & Lounge with USB & USB-C
- 12v/USB Socket & TV Point at Outside Picnic Table
- 300AH Lithium Battery & 2nd Battery Box Fitted on Chassis
- External Solar Input
- Portable Bluetooth Speaker & Tuner
- Door Light & Entry Handle
- LED Lighting - Roof, Kitchen, Ensuite
- Bug Annexe Light
- Roof Digital TV Antenna
- Reversing Camera & Car Monitor Kit
- Full Oven with 3 Burner Gas & 1 240V Element
- 2-way switch from bedroom to Ensuite lights
- 24” Smart TV on Wall Mounted Bracket
- 3 x 220W Roof Mounted Solar with 30A Regulator MPPT
- Projecta PM435C 30A Battery Management System MPPT with 7” Colour Monitoring Screen
- Extra Solar Controller 20A PMD-BT7C
- Double 240v Point & USB Point to wardrobes and lounge
- Full Oven
- Drawers on Metal Runners
- Grab Handle on Entry Wall at Door
- Footrest Padded End
- 12V Rangehood
- 2 Single Towel Rails and 1 Toilet Roll Holder
- Full Laminate Benchtop
- Wardrobes Recessed Cutouts With Shelf
- Hidden latches to OHC
- Washing Machine- not standard in family models
- Recessed Cook Top with Lid Over Stove
- Cutlery tray
- Mirror in Ensuite
- Fire Extinguisher
- Innerspring Queen Mattress
- Smoke Detector
- Frosted Glass Shower Door
- Piano Door Hinges
- Push Button Locking Handles to lower doors and drawers
- Microwave above standard fridge
- Diesel Heater to under bed
- A-Frame Mains Pressure Tap
- Gas/Electric Hot Water System
- 12V Water Pump
- Water Filter to sink with 3-1 Tap
- 95lt Grey Water Tank
- External Gas Bayonet At Front Boot Door Side
- 2 x Lockable Water Tank Inlet
- 2-Door RUC6408X 188lt Compressor Fridge
- 2 x 95L Water Tanks
- China Vanity to Ensuite
- Mains Pressure Water Inlet
- Twin water level gauges
- Porcelain Bowl Toilet
- Checker Plate Tank Protection
- Dual 9Kg Gas Bottles with Changeover Regulator
- Deep bowl Stainless Steel Sink with Drainer (Van 7-7 No Drainer)
- 12V Fan Hatch to Shower & Toilet
- 5 year structural factory warranty
- Smooth Aluminium Composite Sides
- Black External Trim
- LED Roof Skylights with Blind & Flyscreen (1 or 2 depending on layout)
- Double Glazed Push Out Windows & Integrated Blinds
- External Fold Down Picnic Table with Integrated 12v Lighting
- Gree Roof Top Slimline 3.5Kw Air Conditioner with Smart WIFI Control
- Raven Coat Checker plate to lower front, lower rear
- Raven Coat 800mm Side Checker
- Awning
- Radius Locking Security Main Door
- Aluminium Frame to Side Walls
- Fiberglass Sandwich Panel Floor Fully Insulated
- Galvanised Rear Generator Compartment on certain layouts
- Galvanized Front Tunnel Boot with Large Access Doors
- Updated 2025 Decal
- One key to access hatches and main door
- Solid Fold Down Step – no step well
- One-Piece Fibreglass Sandwich Panel XPS Front, Roof and Rear Fully Insulated
- Raven Coat Checker Plate Wheel Spats
