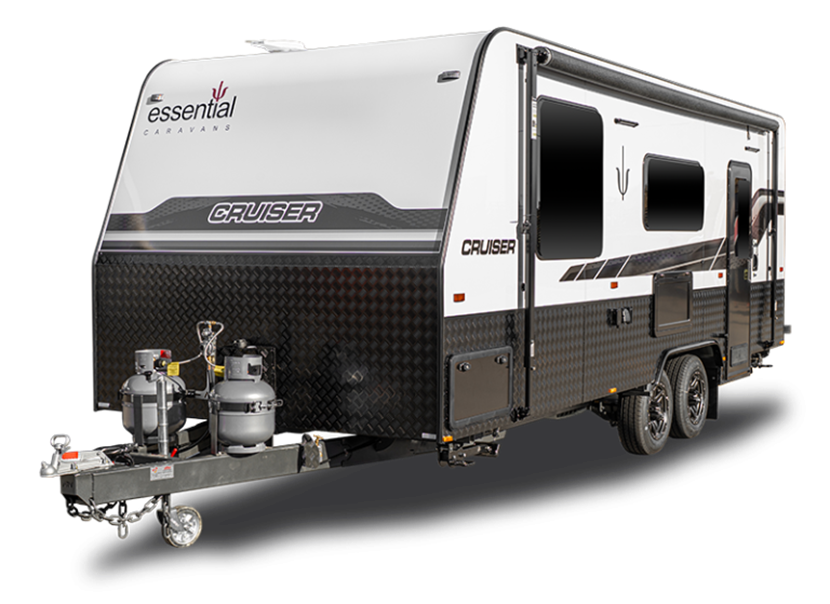

CRUISER
CaravanThe Essential Cruiser is a culmination of over 35 Years of experience & design techniques all rolled into one exceptional caravan.
Key Features
Contemporary designs and layouts, modern appliances and creature comforts.
Floor Plans
Style, luxury and exceptional build quality
Models
-
Van Layouts
-
V1.0 - 17'4
17' 4" -
V1.1 - 18'8
18' 8" -
V2.1 - 19'
19' 0" -
V3 - 19'6
19' 6" -
V4 - 20'
20' 0" -
V5.2 - 20'6
20' 6" -
V6 - 21'
21' 0" -
V7 - 21'6
21' 6" -
V7 Recliner
21' 6" -
V7.7 - 21'8
21' 8" -
V9 - 21'10
21' 10" -
V10 - 22'10
22' 10" -
Family Layouts
-
F1.2 - 19'
19' 0" -
F2 - 21'
21' 0" -
F2.6 - 21'10
21' 10" -
F2.7 - 21'10
21' 10" -
F3 - 22'10
22' 10" -
F4 - 24'10
24' 10"

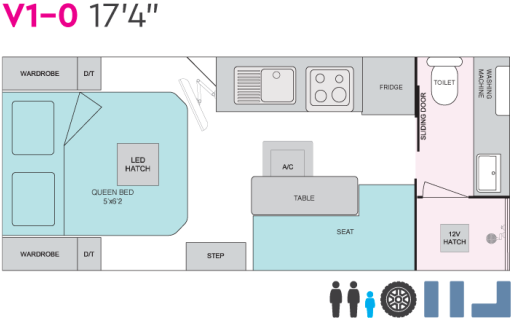

V1.0 - 17'4
Dimensions
Single Axle

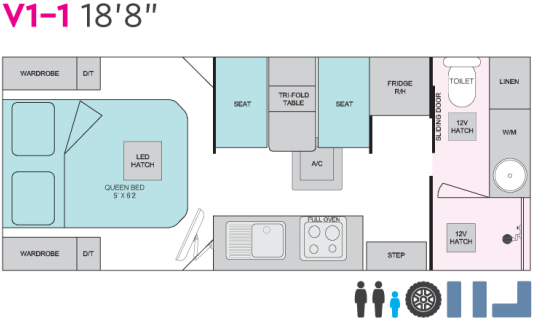

V1.1 - 18'8
Dimensions
Single Axle

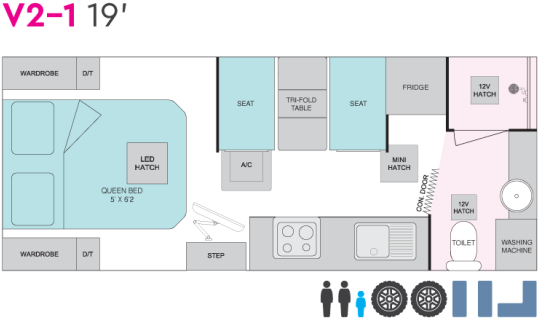

V2.1 - 19'
Dimensions
Tandem Axle

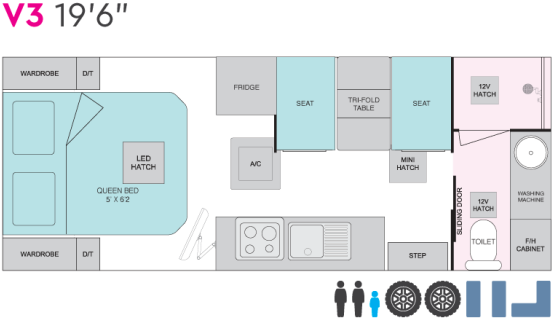

V3 - 19'6
Dimensions
Tandem Axle

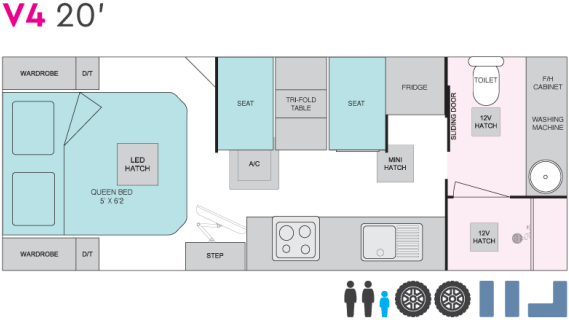

V4 - 20'
Dimensions
Tandem Axle

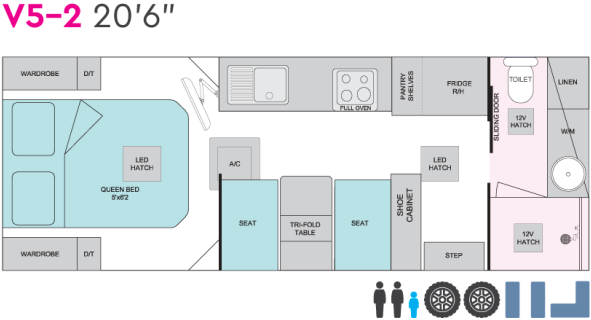

V5.2 - 20'6
Dimensions
Tandem Axle

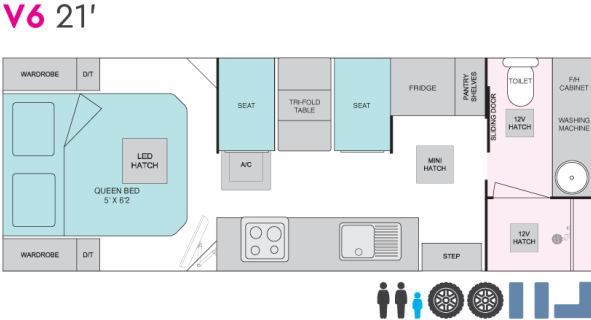

V6 - 21'
Dimensions
Tandem Axle
V7 - 21'6
Dimensions
Tandem Axle

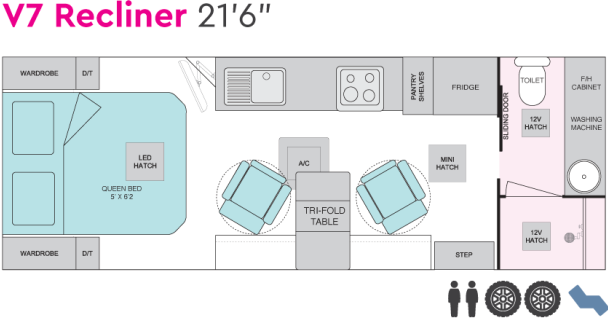

V7 Recliner
Dimensions
Tandem Axle

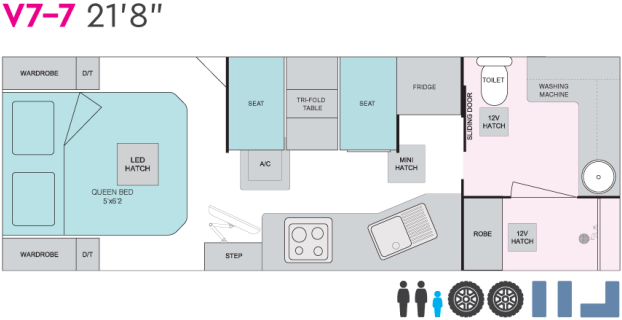

V7.7 - 21'8
Dimensions
Tandem Axle

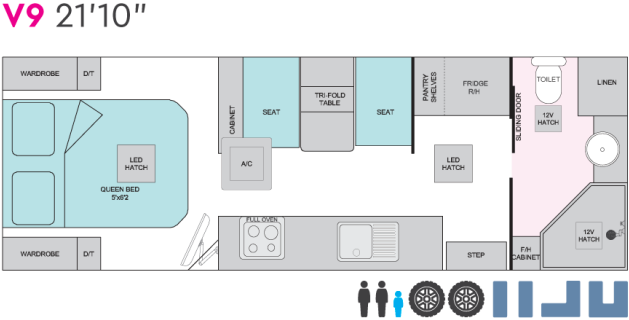

V9 - 21'10
Seating Option
Cafe Seating
L-Shaped Seating
L-Shaped Seating

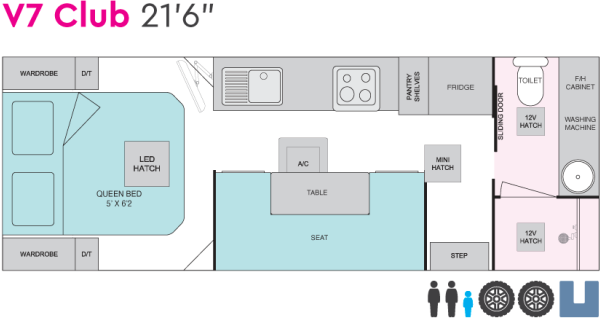

Club Seating
Dimensions
Tandem Axle

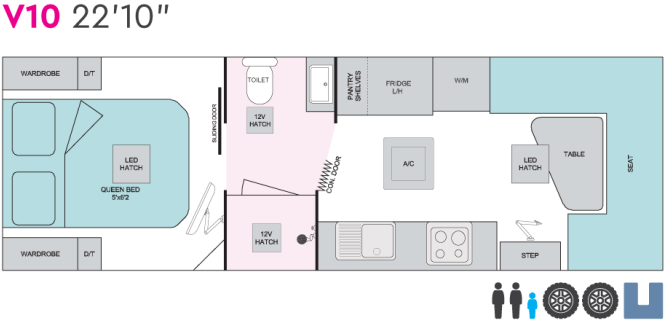

V10 - 22'10
Dimensions
Tandem Axle

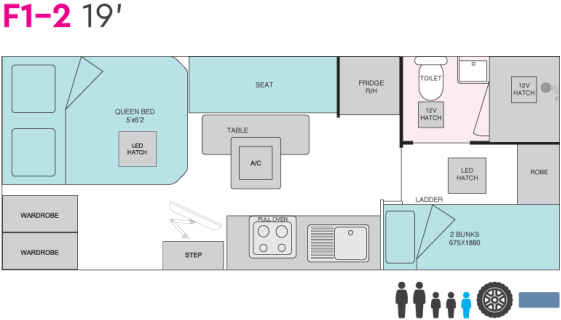

F1.2 - 19'
Dimensions
Single Axle

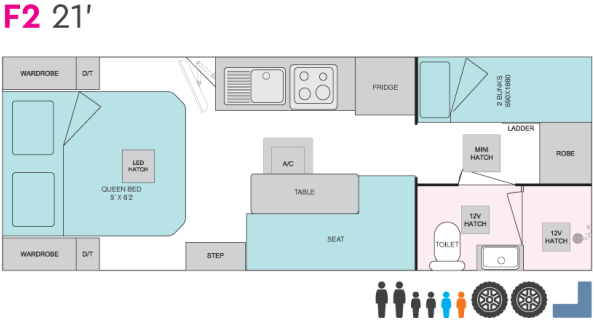

F2 - 21'
Dimensions
Tandem Axle

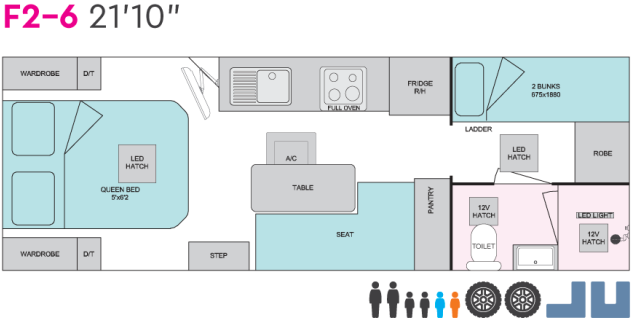

F2.6 - 21'10
Dimensions
Tandem Axle

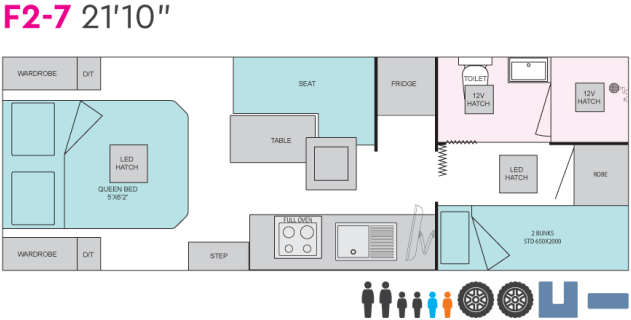

F2.7 - 21'10
Dimensions
Tandem Axle

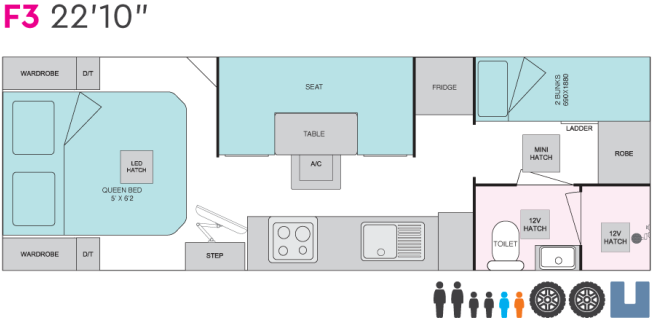

F3 - 22'10
Dimensions
Tandem Axle

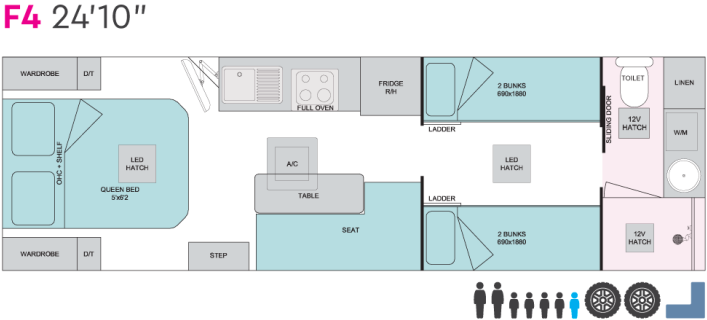

F4 - 24'10
Dimensions
Tandem Axle
CRUISER Standard Features
- Mesh On A-Frame
- 245/75/R16 All Terrain Tyres & 12” Brakes to Single Axle
- 235/75R15 All Terrain Tyres to Tandem Axle above 21’6
- Break Away System
- 50mm Ball Coupling
- Wind Up Jack
- Drop Down Stabilizer Stands
- Batteries Mounted on Chassis
- 4” Heavy Duty Chassis & 2” Chassis Raiser up to 21’6
- Load Share Leaf Spring Suspension
- 6” Heavy Duty A-frame
- A-Frame Tap & Gas Regulator
- 10” Electric Brakes to Tandem Axle
- 6” Chassis above 21’6 (no raiser)
- Heavy Duty 3 Arm Bumper
- Lockable Coupling with Twin Safety Chains
- 8” Jockey Wheel
- Water Tank Stoneguards
- 205/70/R15 Light Truck & 15” Alloy Wheels to Tandem Axle up to 21’6
- Straight Axles to Single & Tandem axle
- Spare Wheel Fitted to Bumper Bar Bolt On (Van 3, Van 5 & F2-7 Underslung spare)
- LED External Lights
- Power Points (1x Kitchen, 1x Ensuite)
- 240V 15AMP Inlet & 240V 10AMP Outlet
- Bulk Heads With Strip Lights
- Circuit Breaker & Earth Leakage
- 2-way switch from bedroom to Ensuite lights
- 2 x Bug Annexe Lights
- 2 x 220W Solar Panels on roof with 30A Regulator MPPT
- External Solar Charge Input
- Double 240v Point & USB Point to each wardrobe and lounge
- Door Light & Entry Handle
- LED Lighting - Roof, Kitchen, Ensuite
- 12V/USB Socket & TV Point at Outside Table
- Roof Digital TV Antenna
- Reversing Camera & Car Monitor Kit
- 12 Pin Trailer Plug
- 1 x 300AH Lithium Battery Chassis Mounted
- Reading Lights to Bedroom & Lounge with USB & USB-C
- Projecta PM335C 30A Battery Management System MPPT with 4” Colour Monitoring Screen
- 24” Smart TV on Wall Mounted Bracket
- Recessed Cook Top with Lid Over Stove
- Cutlery tray
- Mirror in Ensuite
- Fire Extinguisher
- Door hinges Hairline STD
- 12V Rangehood
- 2 Single Towel Rails and 1 Toilet Roll Holder
- Wardrobes Recessed Cutout With Shelf
- Full Laminate Benchtop
- Hidden latches to OHC
- Van 3 Microwave in Kitchen OHC with HWS under Fridge
- One-Piece Poly Honeycomb Floor
- Full Oven
- Drawers on Metal Runners
- Grab Handle on Entry Wall at Door
- Footrest Padded End
- Innerspring Queen Mattress
- Smoke Detector
- Frosted Glass Shower Door
- Washing Machine - not standard in family models
- Push Button Locking Handles to lower doors and drawers
- Microwave above standard fridge
- Diesel Heater under bed
- A-Frame Mains Pressure Tap
- Gas/Electric Hot Water System
- Mains Pressure Water Inlet
- Twin water level gauges
- Porcelain Bowl Toilet
- External Gas Bayonet At Front Boot Door Side
- Deep bowl Stainless Steel Sink with Drainer
- 2-Door RCD10.5XES 200lt Compressor Fridge
- 2 x 95L Water Tanks
- China Vanity to Ensuite
- 2x Lockable Water Tank Inlet
- 12V Water Pump
- Water Filter to sink with 3-1 Tap
- Waste Water Outlet
- Dual 9Kg Gas Bottles with Changeover Regulator
- Van 7-7 No Drainer
- 600mm Side Checker Plate
- Colour-Coded Black External Trim
- Awning
- Radius Locking Security Main Door
- Smooth Aluminium Composite Sides
- Galvanized Front Tunnel Boot with Large Access Doors
- One-piece Fibreglass XPS Sandwich Panel Roof Fully Insulated
- Updated 2025 Decal
- Checker Plate Step Well
- Gree Roof Top Slimline 3.5Kw Air Conditioner with Smart WIFI Control
- One-Piece Poly Honeycomb Floor
- Plastic Mould Lower Rear
- Insulated Walls with Meranti Timber Frame
- 12V Fan Hatch to Shower & Toilet
- 5 year structural factory warranty
- LED Roof Skylights with Blind & Flyscreen (1 or 2 depending on layout)
- Double Glazed Push Out Windows & Integrated Blinds
- Poly Frame Front Wall
- External Fold Down Picnic Table with Integrated 12v Lighting
- One key to access hatches and main door
